FOX TOUR PACK HILUX N80 Toyota Hilux/Vigo IFS 150 Series

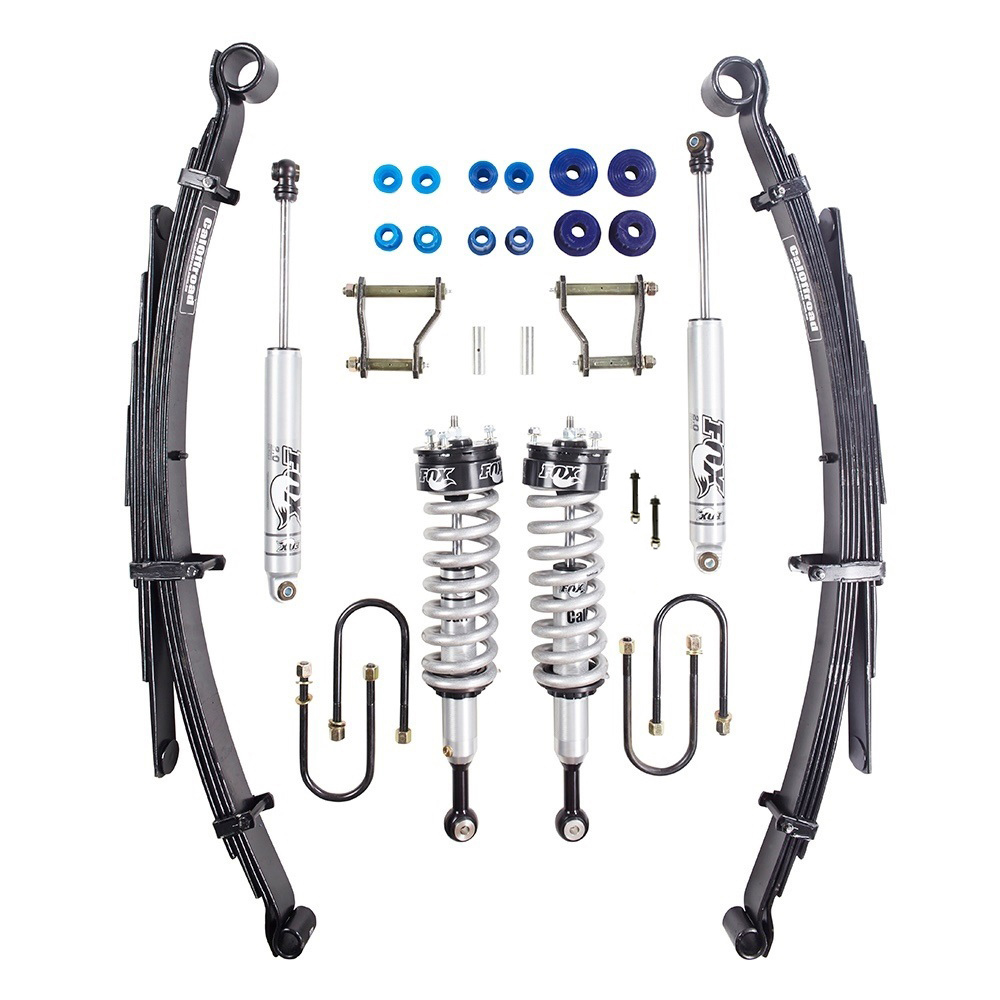

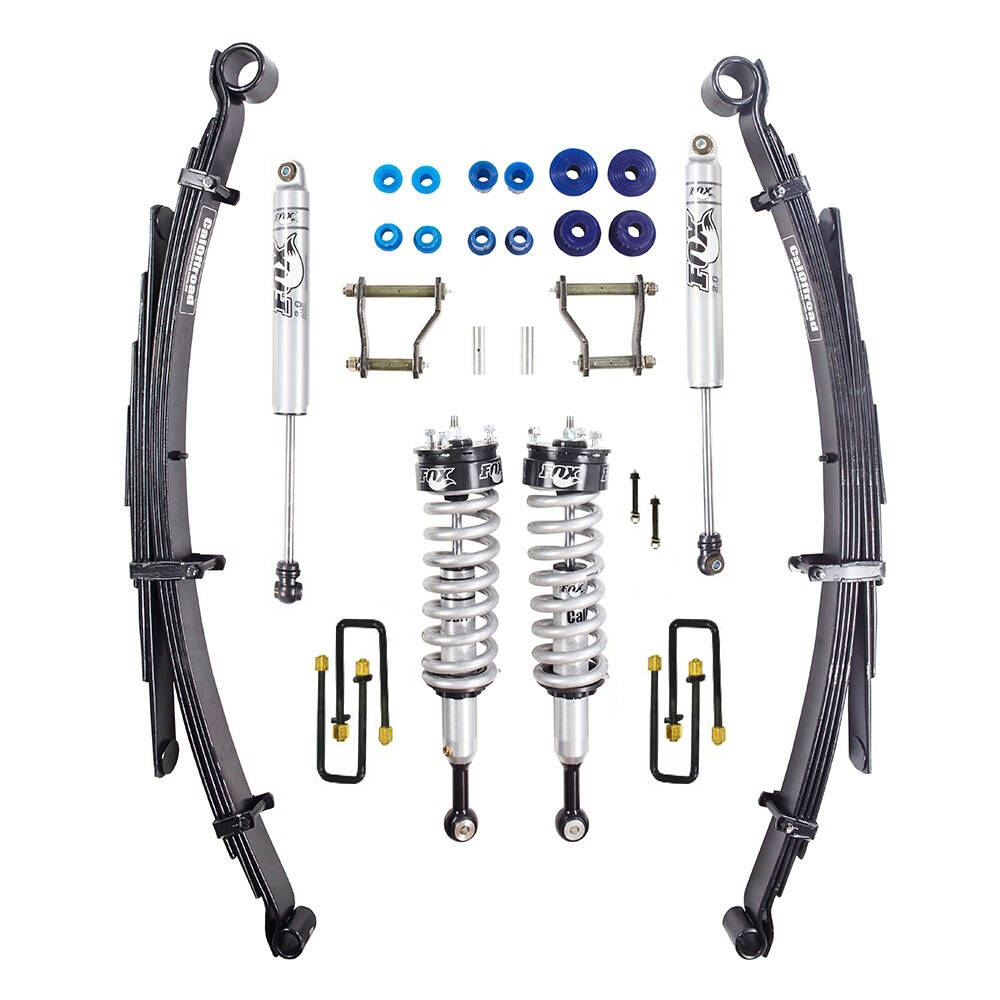

CalOffroad Fox Tour Pack - 2" Suspension Lift Kit

2 x 986-02-024 Fox Struts

2 x CalOffroad Platinum coils springs

2 x 985-24-134 Fox Shocks

2 x CalOffroad Leaf Springs

4 x CalOffroad Ubolts

2 x CalOffroad GSHLX150R Greasable Shackles

1 x CalOffroad BKHLX150 Leaf Spring Bush Kit

2 x CalOffroad Greasable Pins

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

The coilovers come adjusted to an approximate height and may require fine tuning adjustment for your specific vehicle

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Body	2.0" impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating	Hard-anodized for a durable finish
Reservoir	Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft	5/8" hard chrome plated heat-treated alloy steel
Piston	Race-developed high-flow piston design
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Oil	JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing	Large diameter, heavy-duty spherical
Mounting	Direct replacement for stock and aftermarket lifts kits
Adjustments	Ride height preload ring

CalOffroad has strong roots with the Toyota Hilux that began in the early 80s.Spending time in the USA with industry leaders building the latest in vehicle design and offroad suspension technology. Testing offroad designs in Moab Utah and Colorado. CalOffroad has a family history of covering most of Australias remote and outback destinations. We have our own offroad testing facsility that we use to refine and develope products. This combined experience allows us to create the most advanced 4wheel drive suspension components available in Australia and anywhere in the world.

With the over 30 years of 4x4 and suspension developement with Toyota Hilux this has helped us bring the most advanced technology into our suspension range.

CalOffroad has developed the most advanced Fox 2.0 coilover for the 2" and 3" Hilux. This has been the delelopement efforts of over 2 years of R&D directly with the head Fox engineers allowing us to bring you the most advanced Fox 2.0 IFP coilover on the market for Toyota Hilux. The CalOffroad Fox Coilovers are not a rebranded Fox coilover from some other model car. these are purpose built from Fox to meet the stringent quality requirements for CalOffroad to make your Hilux look and ride the way you want.

Using our over 30 years of Hilux experience allows us to bring you the best components creating the CalOffroad Fox Smoothest Ride on Earth

The CalOffroad Platinum Series coils have been deleloped specifically to run on Fox coilovers and run our latest coil spring design using our tapered wire technology, this allows for extremely smooth small bump compliance right up to big hits.

Our CalOffroad Platinum Series wire technology allows us to tune a rebound rate into the coil, this helps assist the shock for a less aggresive rebound and means less shock fade in extreme conditions. We first Dyno test our shocks and coilovers to make sure the coil rate is tuned to match the shock valving.

CalOffroad Platinum Coils are designed and made in Australia

CalOffroad Platinum Fox Coilovers are Designed in Australia Made in USA and coil assembly is done in Australia per order

The coilovers come adjusted to an approximate height and may require fine tuning adjustment for your specific vehicle

CalOffroad leaf springs have been developed over many years and are designed to bring you the most advanced and smoothest ride possible.

Our leaves feature a specialy designed wear pad between each leaf. Each leaf pack features a specific build ratio that allows us to tune when the 1st stage engages with the 2nd stage this means we can supply you the smoothest riding leaf pack wether you have no weight or large anounts of weight.

we also build in a high flex design allowing for more wheel travel and if you require more again just let us know and we can custom build any pack to suit.
